Module 2 in – 2 out

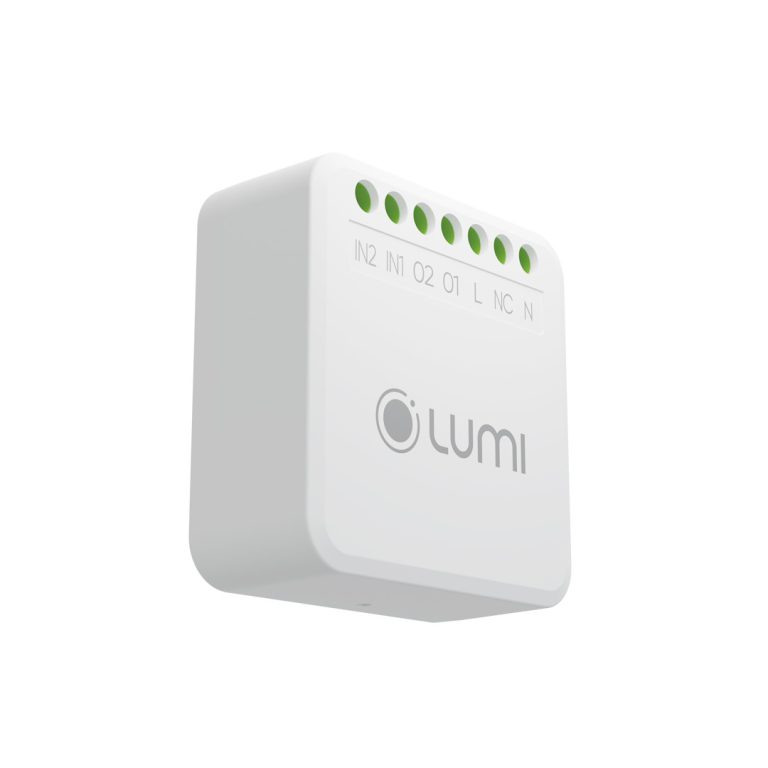

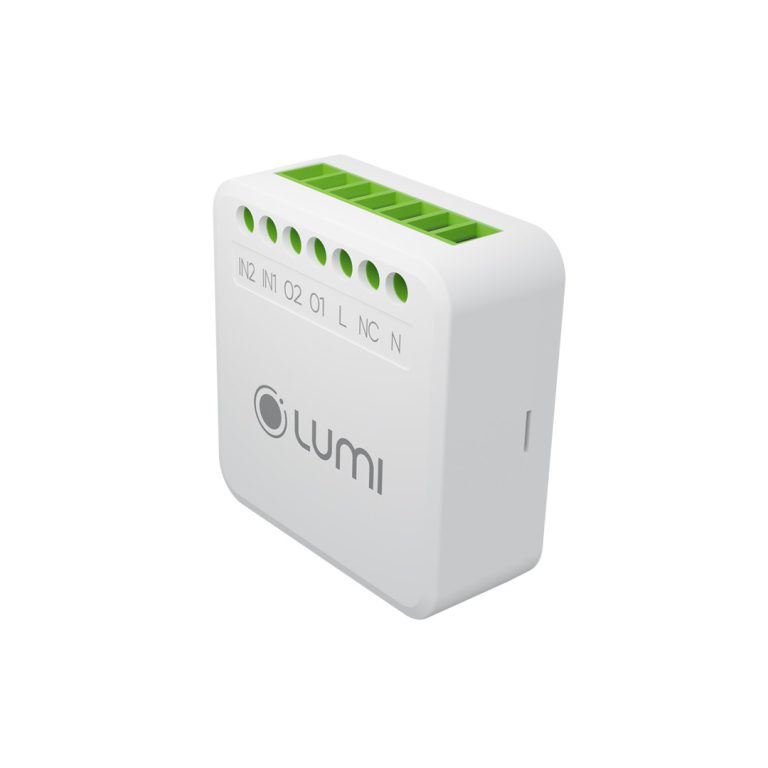

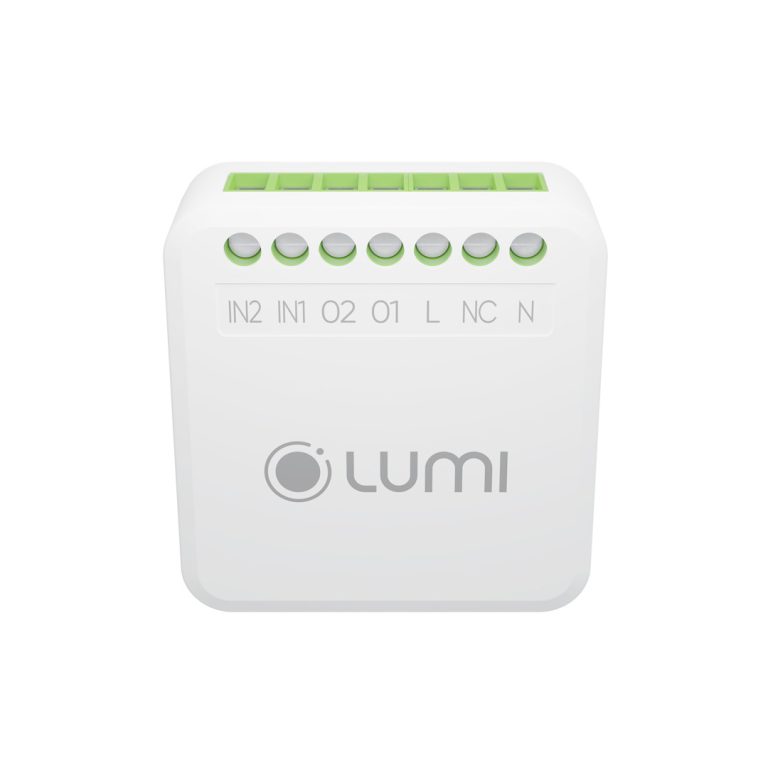

With a compact rectangular box design, the size of only about 1 matchbox, the 2in 2out module easily makes the house smarter and discreetly installed in the base of the switch.

1. Application of Module 2in – 2out in smart home

Described for those who love the traditional on / off design and experience of the mechanical switch, but still want to turn home electrical appliances into smart devices, the 2in – 2out module allows users to perform the following smart features

• Turn on / off the lighting system by Smartphone and voice
• Turn on / off the heater with Smartphone
• Schedule/schedule the lights, water heater according to the family schedule
• Create groups of devices of the same type in the Zigbee network, is the input signal to trigger rules, scenes, and calendars

2. Mode of operation of module 2in – 2out

The 2in – 2out module has 2 input loads and 2 output loads and is installed in the base of the switch. Simply put, when the user presses the switch, this signal will transmit to load 1 of the module. This signal is considered as 1 input signal. From load position 1 of the module, a signal will be transmitted to load output 1 of the module. This output load is directly connected to the electrical equipment.

When using the smartphone to control, the signal is transmitted from the Smartphone to the Central Controller. After being processed, the signal will be sent to the 2in – 2out module, then transmitted to the device to execute the command.

Thanks to the 2in 2out module, customers have 1 more option to set up a Lumi Smart Home system without infrastructure intervention, and even without changing the existing mechanical switch.
